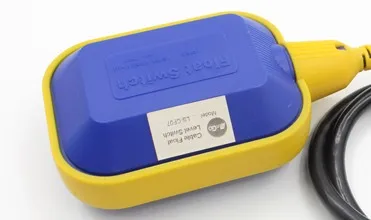

Rubber cable PP water level float switch differential pressure switch float level switch

FOB Reference Price:Get Latest Price
$2.00 - $5.00 / Pieces | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Samples:
$6.00 /Pieces | 1 Pieces (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
BINGO
Model Number:
LS-CF-P07
Cable length:
2 ~ 25meter
Cable material:
PVC, Rubber
Cable conductor:
3*0.5mm2, 3*0.75mm2, 3*1.0mm2
Voltage:
125VAC, 250VAC
Current:
10(4)A
Working Temperature:
0~60℃(PVC cable), 0~80℃(Rubber cable)
Contact form:
SPDT, SPST
Protection grade:
IP 68
Housing material:
PP
Working Pressure:
±0.5Mpa
Product Certification Verified
CE Certified.
Valid from 2016-05-18 until 2021-05-17
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
carton for Rubber cable PP water level float switch
Port
NINGBO/SHANGHAI
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Main Recommend

PT-DP001Pressure transmitter     LT-RPY603 radar level                 PG-1 pressure gauge              FM-RP-A24M-V rotameter

   PS-LA3 pressure switch           FM-TE03 turbine flowmeter       PS-LA10 pressure switch       Stainless steel float switch

Product Description

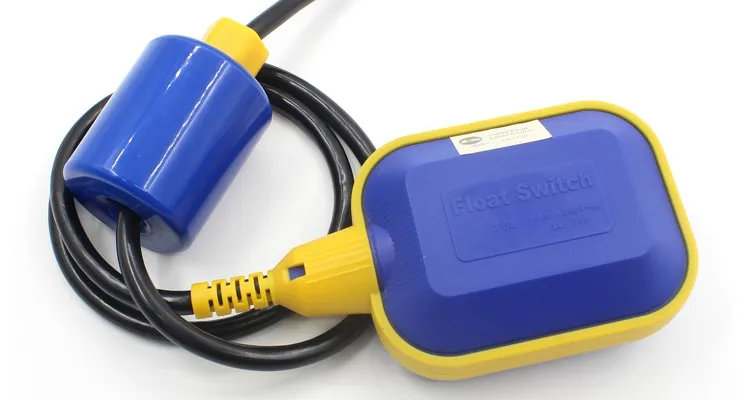

Double color PVC/rubber cable PP float ball level switch with CE

Simplicity in structure, convenience in operation, long service life, easiness in maintenance and environment friendly. It can resist sewage,so that widely used in pool in resident,factories and mines ect., and ponds, barrel, manger and pot with oil, acidand alkali as well as the vessel with high viscosity and suspended substance.

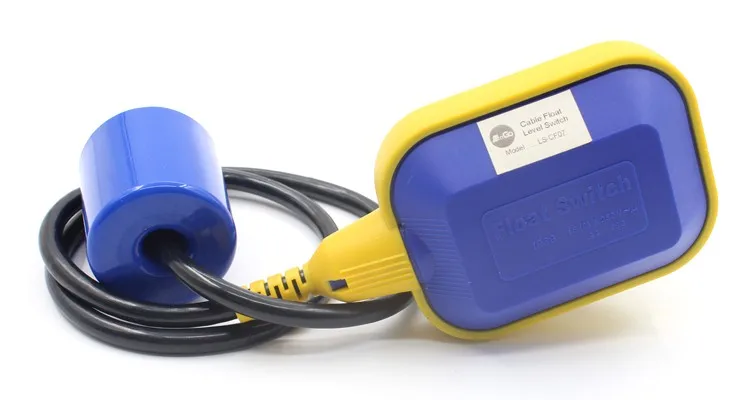

Detailed Images

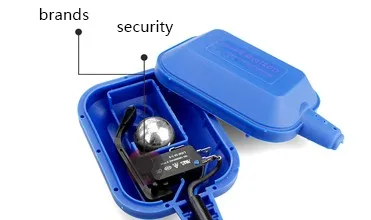

High Sensitive Micro Switch.

Mechanical life is up to 50,000 times.



Bold copper core wire.

Good conductivity and longer life.


Conductor Size:3.*0.5mm / 3.*1.0mm
Cable length:1m/ 2m/ 3m/ 4m/5m;customized.

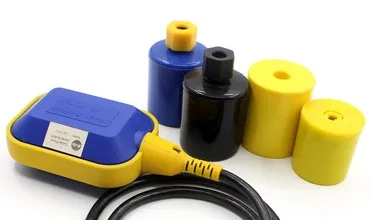

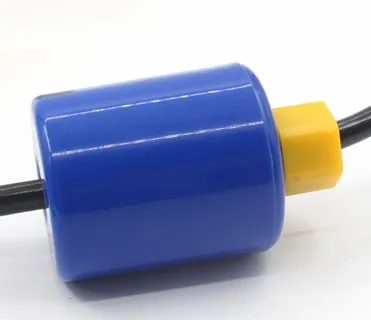

Options of counter weight.

-Contact capacity: AC250V/10(4)A
-Output signal: SPDT
-Protection grade: IP68
-Float Material: PP
-Cable material: PVC/Rubber



Structural features.

Ultrasonic welding sealing CE and RoHS approval PP material.

Product Parameter
Model
LS-CF-P07
Power supply
24VDC, 110VAC, 220VAC
Output
SPDT Relay, PNP
Output capacity
220VAC 5A/24VDC 3A
Power consumption
0.5W
Working pressure
2Mpa
Medium temp
-30~150℃
Medium density
≥0.6g/cm3
Fork material
SUS304, SUS316L, SUS PTFE spray painting
Response time
<0.5s
Output delay time
1~60s(optional)
Sensitive
Adjusttable
Alarm
HLFS(high level alarm); LLFS(low level alarm)
Protection grade
IP66
Electrical connection
NPT 1", customized
Explosion proof
Exd II CT4

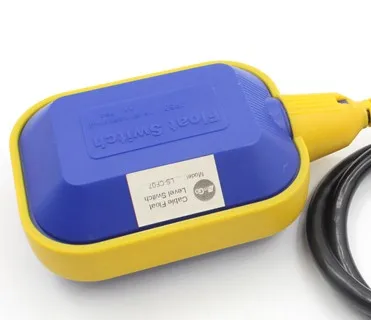

Product Display
