tuning fork level switch for solid vibrating rod level switch

FOB Reference Price:Get Latest Price
$1.00 - $250.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview

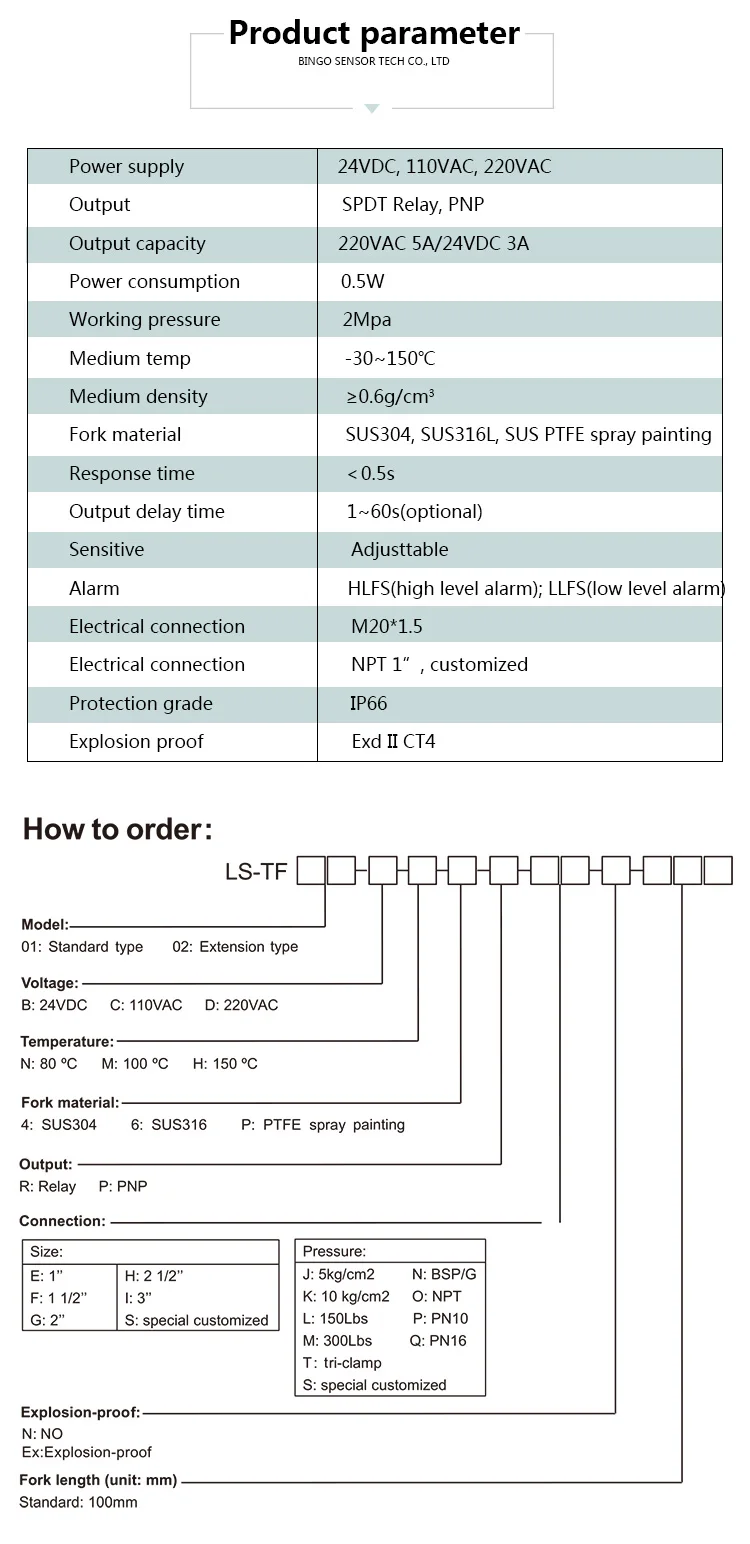

Quick Details
Place of Origin:
Shanghai, China
Brand Name:
BINGO
Model Number:
LS-TF serial
Product Name:
tuning fork level switch
Power Supply:
24VDC(standard)/220VAC
Output:
SPDT Relay(single-pole double throw)
Output Capacity:
220VAC 5A/24VDC 3A
Ambient Temp.:
-20℃~70℃
Medium Temp.:
-30℃~80℃
Fork Materia:
SUS304, SUS316L, SUS spray coating PTEE etc
Delay Time:
1~50s
Top & Low Position Alarm:
HLFS(high level alarm); LLFS(low level alarm)
Response Time:
<0.5s
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
NEUTRAL CARTON fortuning fork level switch
Port
NINGBO/SHANGHAI
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 To be negotiated

 tuning fork level switch for solid, vibrating rod level switch





1, Introduction

tuning fork level switch for solid, vibrating rod level switch is a kind of new control switch, which is mainly depend on the tuning fork through the vibration principle to measure the level of material. Through the installation of the piezoelectric crystal on the base of the tuning fork to make the tuning fork vibrates under the resonance frequency. When the tuning fork and the medium contrast, tuning fork frequency and amplitude changes, these changes are detected by the intelligent circuit, and converts it into a switch signal.

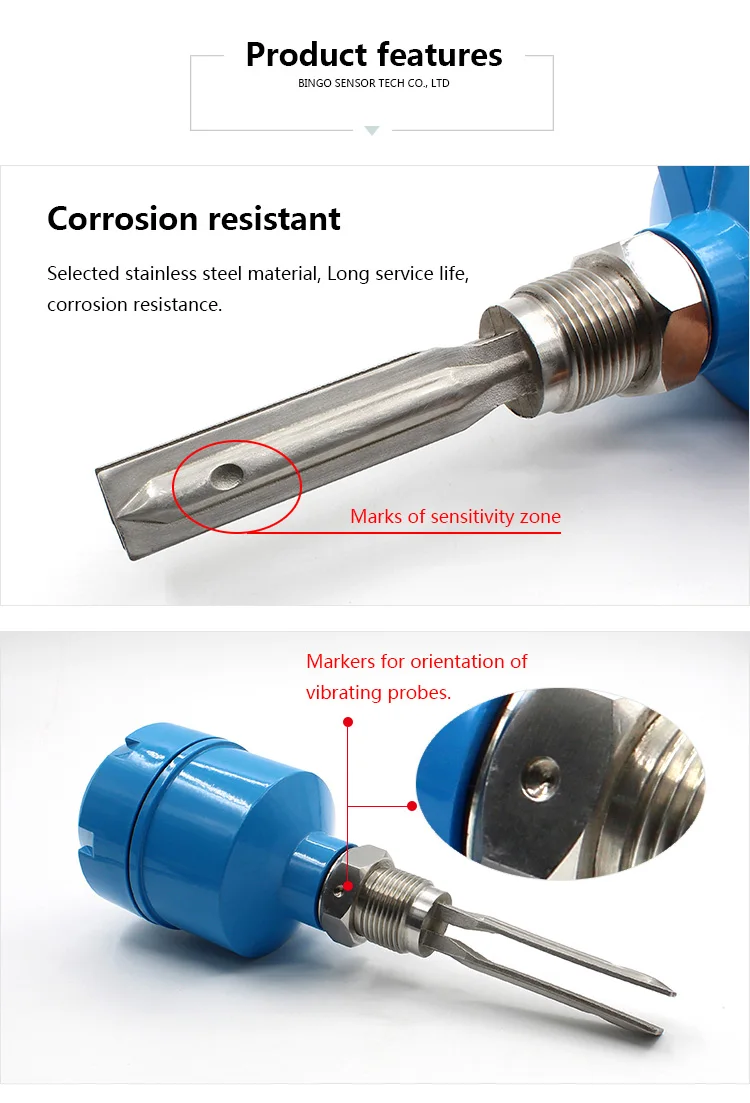

2, Features

  • High adaptation: no influence on electrical parameter and density of medium, suitable for various conditions. Scaling ,stir, turbulent flow, bubble ,vibration, middle viscosity, high pressure, high temperature etc.
  • No calibration: no need for calibration on spot since no impact on electrical parameter and density of medium
  • Maintenance-free: no moving parts, no need to maintain after installation

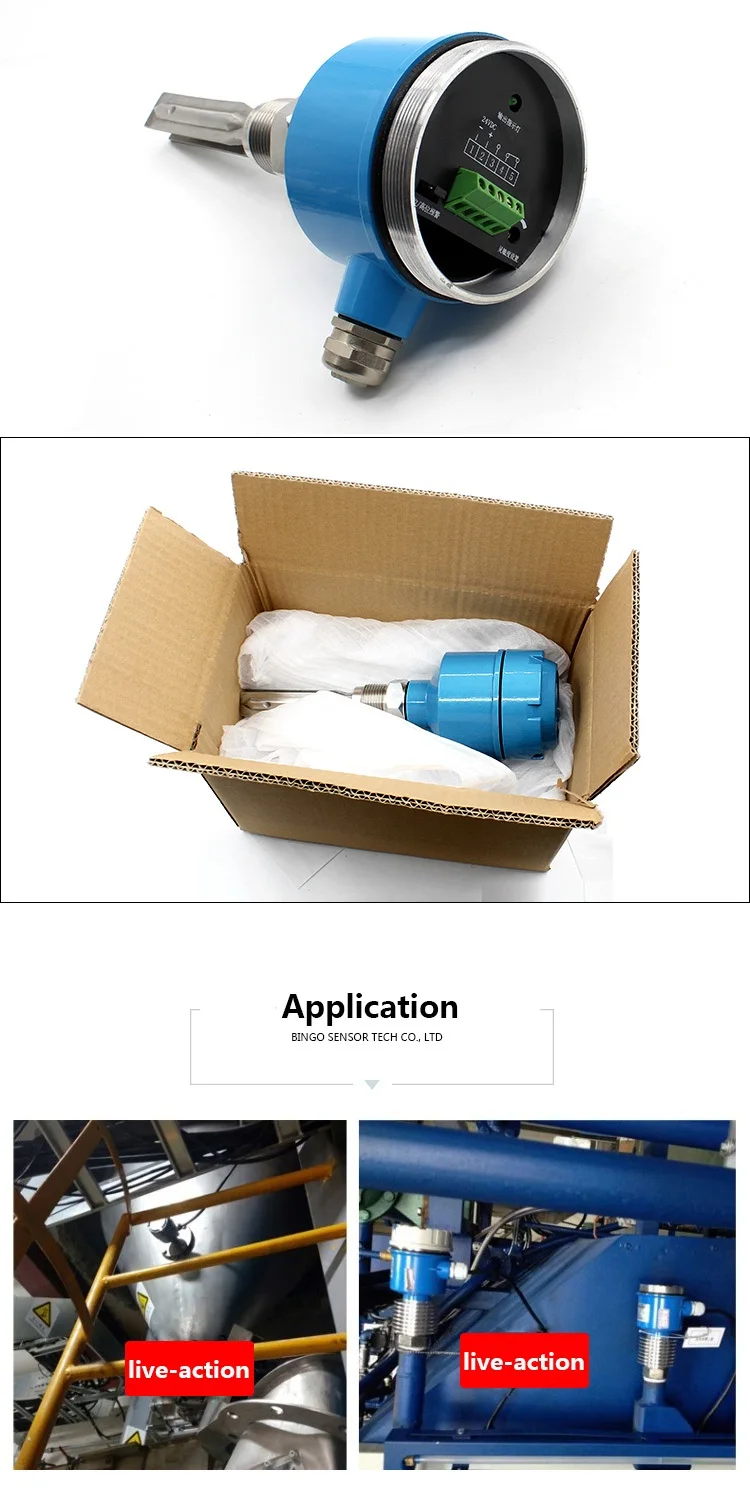

3, Application

  • Water, mineral water
  • Waste water, sewage, slurry, acid alkali solution
  • Beer, beer starter culture, juice, beverage
  • Paper pule, glue,dye,solid power and other similar good mobility materials
  • Diesel and other similar dangerous liquids/ hazardous conditions
