Internal thread impeller turbine water liquid flow indicator controller turbine flow meter

  • 10 - 99 Pieces
    $20.00
  • >=100 Pieces
    $18.00
Material:
stainless steel
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 Negotiable
Customization:
Model (Min. Order: 200 Pieces)
Samples:
$20.00 /Pieces | 1 Pieces (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
BINGO
Model Number:
FM-TE04
Type:
Variable Area Water Flowmeters, oval gear flow meter
Size:
DN6-DN50
Material:
304/316 Stainless Steel /PTFE / Tempered Glass
Repeatability:
about 0.2%
Operating Pressure:
0.6Mpa / 1.0Mpa / 1.5Mpa / 2.0Mpa / 2.5Mpa.
Accuracy:
0.5%
Medium:
Liquids / Oil / Solvent or customized
Supply Ability
Supply Ability:
5000 Unit/Units per Month
Packaging & Delivery
Packaging Details
1.inner box and outer container with dirfferent sizes and specifications of New product internal thread impeller turbine water liquid flow indicator controller.
2.Professional packaging staff in charge of New product internal thread impeller turbine water liquid flow indicator controller.
Port
NINGBO/SHANGHAI
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Main Recommend

   PS-LA3 pressure switch          PS-LA10 pressure switch          FM-TE03 turbine flowmeter    Stainless steel float switch

       PG-1 pressure gauge               LT-RPY603 radar level                 FS-M1003 flow switch             FM-RP-A24M-V rotameter

Product Description

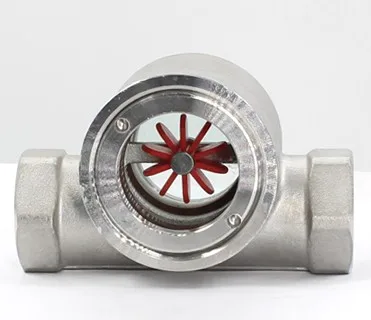

New product internal thread impeller turbine water liquid flow indicator controller

The flow indicator is also called the impeller type flow indicator, Its work to observe the flow of medium in the pipeline. Widely used in petroleum, chemical, chemical fiber, medicine, food and other industrial production equipment, can observe the flow of liquid, gas, steam medium reaction, its indispensable to guarantee the normal production accessories in factory productions. Flow indicators include threaded flow indicator, welding flow indicator, flanged flow indicator.

1. the usage of flow indicator.

Used to observe the medium flow in the pipeline situation, through the impeller can be seen approximately the size of the flow.

2. flow indicator is a practical product easy to observe and install.

At least it is ok to pass through the media. Both ends can be used as an entrance, simple, direct and reliable. It can estimate the flow from observing the rotor speed and easily removed for cleaning, also easy to observe and install.

3. the characteristics of traffic indicator.

A: window surface glass easy to clean.

B: the glass window can be 180 ° direction of observation.

C: with legislation; lying dual easy to install or disassemble.

Product parameter
Model
FM-TFM01
Material
SS304 SS316
Size
DN8, DN10, DN15, DN20, DN32, DN40, DN50
Working environment
Max. 100C
Detailed Images

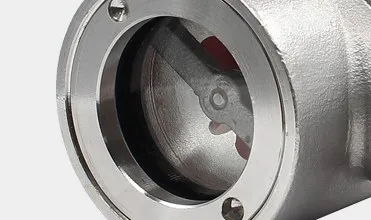

SS material.

Anti-corrosion, long service life.

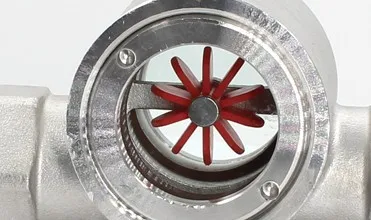

Turbine.

Polytetrafluoroethylene material, good quality, high temperature resistance.

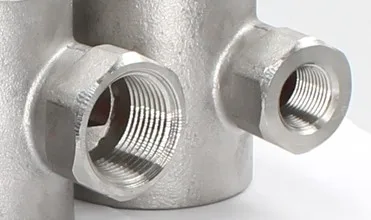

Connection.

Threading part, no leakage.

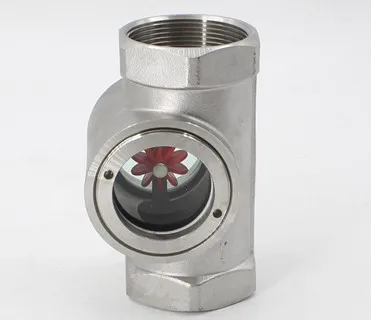

Transparent glass.

Borosilicate, high transparency, high pressure resistance,

stable performance.

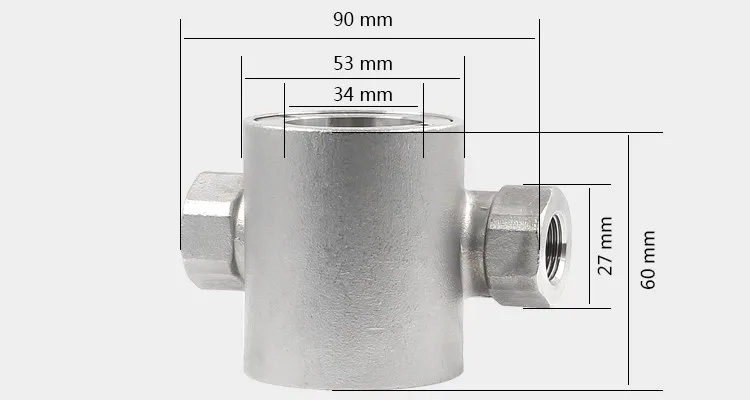

Product sizes


Connection: DN8, DN10, DN15, DN20, DN32, DN40, DN50....(customized)

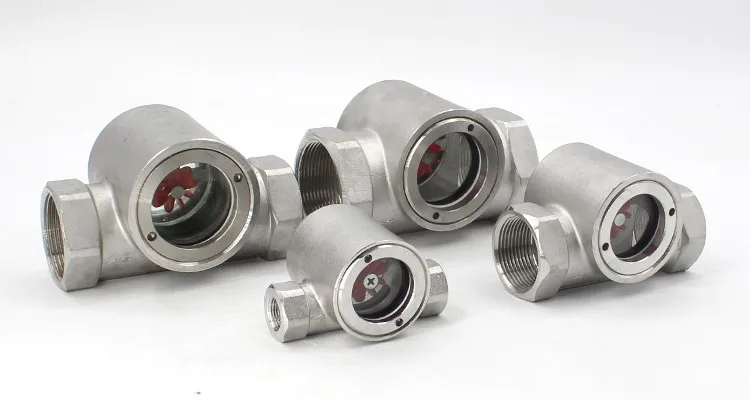

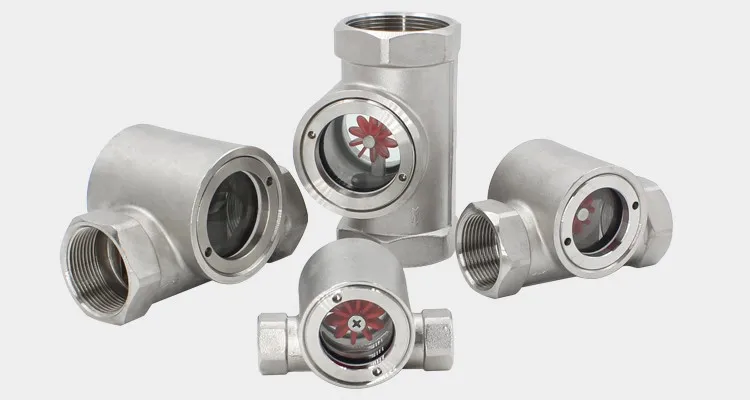

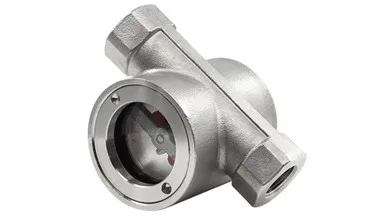

Product photo
