Differential pressure transmitter for air pressure sensor

FOB Reference Price:Get Latest Price
$40.00 - $100.00 / Piece | 1 Piece/Pieces (Min. Order)
Material:
stainless steel
Lead Time:
Quantity(Pieces) 1 - 1 2 - 500 >500
Est. Time(days) 7 15 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
BINGO
Model Number:
PT-DP001
Item:
4~20mA differential pressure transmitter
Accuracy:
0.1, 0.3, 0.5
Zero drift(%FS/4h):
≤0.1 ≤0.3 ≤0.5
Long-term stability(%FS/year):
≤0.2
Compensation temperature(°C):
0~80
Operating temperature(°C):
-20~85
Overload capacity(%):
300
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
NEUTRAL CARTON for 4~20mA differential pressure transmitter
Port
SHANGHAI/NIGNBO
Lead Time :
Quantity(Pieces) 1 - 1 2 - 500 >500
Est. Time(days) 7 15 To be negotiated
Product Description

Differential pressure transmitter


4~20mA differential pressure transmitter use mature and reliable capacitance sensor ,Combined with advanced microprocessing technology and digital capacitance measurement technology.

It has a Very good reliability and longterm stability ,High accuracy up to 0.1%,Continuous modularity for differential pressure,2wire system 4~20mADC with smart HART protocol,Good Explosionproof structure, automatically environmental temperature compensation.

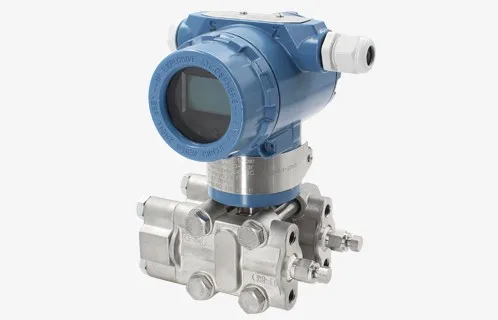

Model Type

PT-DP001



M20*1.5 ,NPT1/2" ,G1/2" Others can be customized.


Intelligent LCD display
Different pressure range setting available,Best Accuracy can be +/-0.1%F.S. Output 4-20mA , 0-10V, 4~20mA+ Hart.

Model
PT-DP001
Media
liquid,gas and steam.
Pressure range
0.15~0.5kpa 0.125-1.5kpa
1.3-7.5kpa 6.2-37.4kpa
31-180kpa 120-680kpa
350-2060kpa 1170-6890kpa
Output
Analog output: 4~20mADC
Digital output: 4~20mADC/HART
Power supply
12~36VDC
Accuracy
0.1%FS.,0.2%F.S.
Working temperature
-40~104℃
Display
LCD display
Protection Grade
IP65
Explosion-proof Grade
Ex ia llC T4, Ex d llB T5

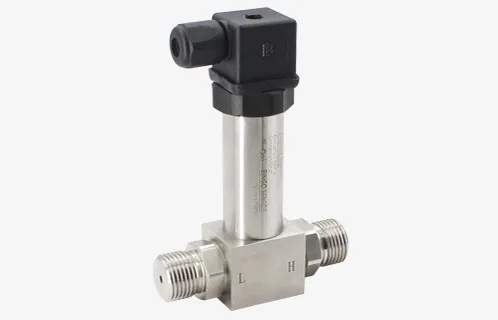

PT-DP008


M20*1.5 ,NPT1/2" ,G1/2" Others can be customized.


Hirschman or cable

Model
PT-DP008
Medium
316L compatible corrosive
Pressure range
0~0.01~5MPa
Output signal
4~20mADC, 0~5VDC, 0~10mADC
Power supply
12-28VDC
Accuracy
≤±0.25%FS(typical);≤±0.5%FS(max)
Working temperature
-40℃~+85℃
Connection
M2×1.5,M12×1,G1/4,G1/2,(Female)
Electrical connection
Hirschman or cable
Protection Grade
 IP65

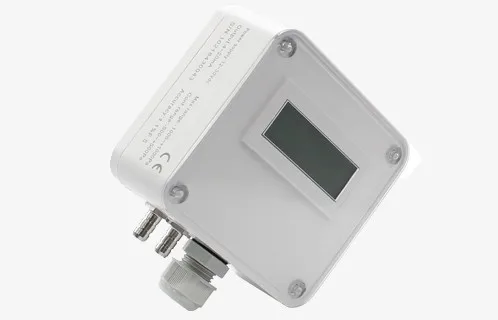

PT-DP0012



ABSF Flame retardant body Air tube connection.

Model
PT-DP012
Medium
Air or non-hazardous gas
Pressure Range
-500Pa~0~500pa....10000kpa
Signal output
4-20mA, 0-10V
Accuracy
1%F.S.
Power supply
24VDC
Working temperature
-10℃ ~70℃
Pressure connection
O.D. 5mm
Display
LED display or without
Protection Grade
IP65

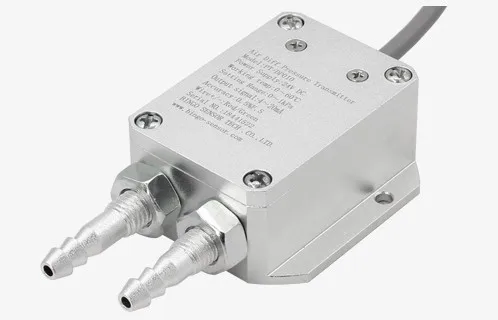

PT-DP010


Quick Pagoda connection

Easy installation , stainless steel material.

Model
PT-DP010
Medium
non-corrosive gas,air
Pressure range
-100pa~0kpa~100pa...600kpa
Signal output
4~20mA,0~5V,0~10V,1~5V,RS485.
Accuracy
0.5%F.S, 1%F.S
Power supply
24VDC
Working temperature
-40~85℃
Pressure connection
pagodas with M10 thread
Electrical connection
 Cable
Protection garde
IP65

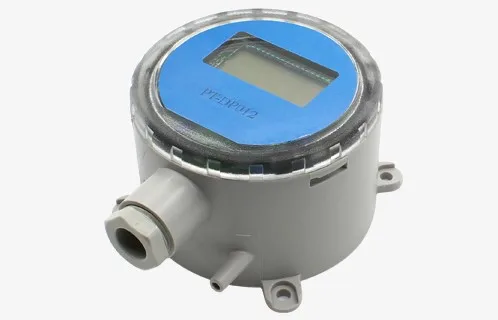

PT-DP014


Quick Pagoda connection

Easy installation , stainless steel material.

LCD display

Different pressure range setting available.
Best Accuracy can be +/-0.5%F.S. Output 4-20mA , 0-10V, 0~5V

Model
PT-DP014
Medium
Non-corrosive gas,air
Pressure range
-100Pa~0Kpa~100Pa~10Kpa
Signal output
4~20mA,0~5V,0~10V
Accuracy
0.5%F.S,1%F.S
Power supply
24VDC
Working temp
-10~60℃
Pressure connection
Pagodas
Display
LCD display
Protection grade
IP65
Attention

If you need other models, you can also contact us to order.
